Main Board FR4 AOI PCB Assembly Printed Circuit Board Assembly Companies Rapid Pcba

FASTPCBA Co., Ltd.
Contact Now

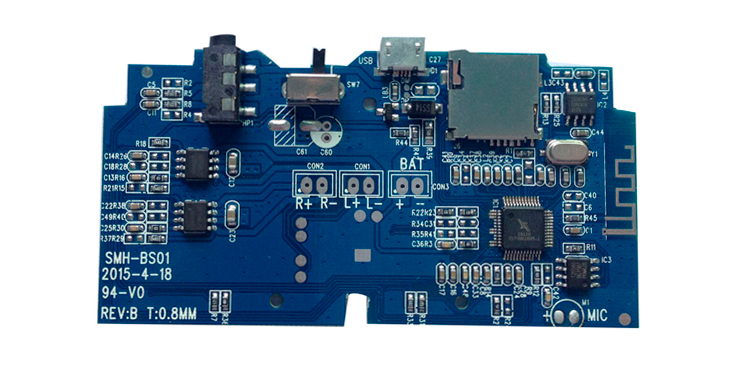

Main Board FR4 AOI PCB Assembly Printed Circuit Board Assembly Companies Rapid Pcba

  • 1
  • 2

Brand Name : FASTPCBA

Model Number : OEM PCB / PCBA

Certification : ISO13485, IATF16949, ISO9001

Place of Origin : China

MOQ : 1PCS

Price : Final price depends on actual order

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs/month

Delivery Time : 1-30 work days

Packaging Details : 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.

Layer Count : 1-48

MOQ : 1 pcs

Min line/space : 0.003"

Max size of finish board : 700*460mm

Copper weight : 0.5-3Oz

Drilling size : Min 0.0078”(0.2mm)

PCBA Testing : X-ray,AOI Test,Functional test

Package : QFN,BGA,SSOP,PLCC,LGA

Contact Now

Electronic Circuit Pcb Customized Factory China Pcb Assembly

Specifications:


1. We offer One-shop PCAB/PCB manufacturing service
2. 20 year of turnkey OEM experience
3. We can provide F4B,F4BK, Teconic,Arlon,Rogers materia PCB
4. Timely customizations PCBs and PCBAs
2. Detailed Terms for Pcb Assembly

Technical requirement:


1) Professional Surface-mounting and Through-hole soldering Technolog.
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval.
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line.
7) High density interconnected board placement technology capacity.

FASTPCBA provide pcb prototype to mass pcb fabrication, with no MOQ, save cost and time for customers of industrial pcba,medical pcba, automotive pcba, smart home pcba, communication pcba, aerospace pcba and military pcba etc.

PCBA Technical Capacity

SMT Position accuracy:20 um
Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
Max. component height::25mm
Max. PCB size:680×500mm
Min. PCB size:no limited
PCB thickness:0.3 to 6mm
PCB weight:3KG
Wave-Solder Max. PCB width:450mm
Min. PCB width: no limited
Component height:Top 120mm/Bot 15mm
Sweat-Solder Metal type :part, whole, inlay, sidestep
Metal material:Copper , Aluminum
Surface Finish:plating Au, plating sliver , plating Sn
Air bladder rate:less than20%
Testing ICT,Probe flying,burn-in,function test,temperature cycling,AXI – 2D and 3D automated X-ray inspection, AOI – automated optical inspection

Main Board FR4 AOI PCB Assembly Printed Circuit Board Assembly Companies Rapid Pcba

Main Board FR4 AOI PCB Assembly Printed Circuit Board Assembly Companies Rapid Pcba

Main Board FR4 AOI PCB Assembly Printed Circuit Board Assembly Companies Rapid Pcba

FAQ:

1, What service do you have?
We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value-added service.

2, What is needed for PCB & PCBA quotation?
For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.

3, How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.

4, What are the main products of your PCB/PCBA services?
Automotive, Medical, Industry Control, IOT, Smart Home, Military, Aerospace.

5, What is your minimum order quantity (MOQ)?
Our MOQ is 1 PCS, sample and mass production all can support.

6, Are you factory?
Our factory is located in 1st Building, No. 18-1, Yuquan East Road, Yulv Village, Gongming Street, Guangming New District shenzhen, china.
